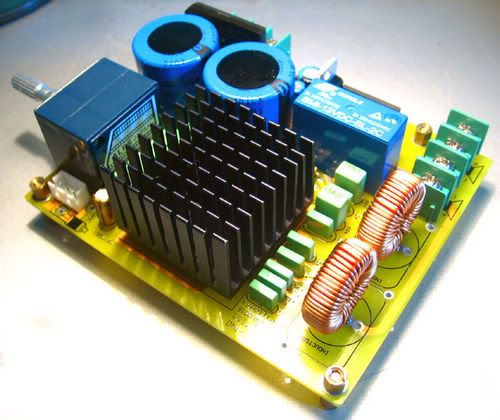

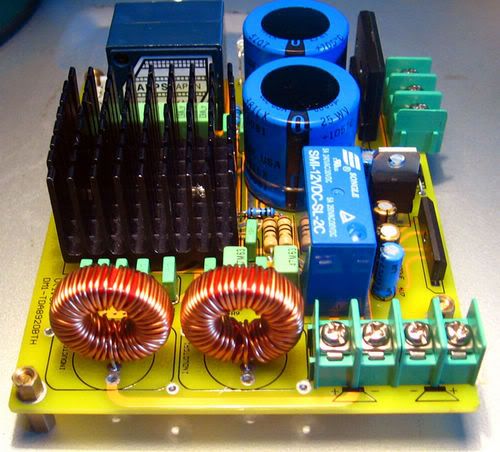

STEREO TDA8920 CLASS D Audio Power Amplifier KIT with UPC1237

STEREO TDA8920 CLASS D Audio Power Amplifier KIT with UPC1237

$36.80

Thanks for visting my store! Free shipping for all Products,ship to Worldwide!


(DIY kit only,you need to solder the components by yourself. SMT resistances and capacitors have soldered on the board.)

This board is easy to build, there is no need to adjust or test.



Features:

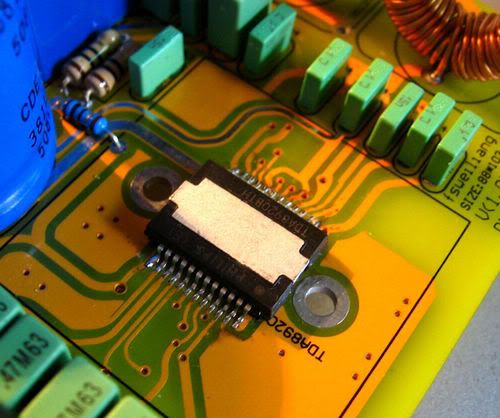

1) Using TDA8920 chip, performance excellent
2) Digital ground (DGND) and Analog ground (AGND) are design in separation. Very small interference and sounds more pure.
3) The circuit layout are all circular arc. No 45°and 90°Inflection point. Sounds more mellow and full.
4) Using ERO capacitors in all the key points. Test performance is much better than the cpas of  WIMA.
5) Include the switch of Zero Dead Zone. Addition the function of current protection and UPC1237 protection.
6) The potentiometer can  install the RK27 or RK16,The price include the ALPS RK27.
7) SMT resistances and capacitors have soldered on the board.

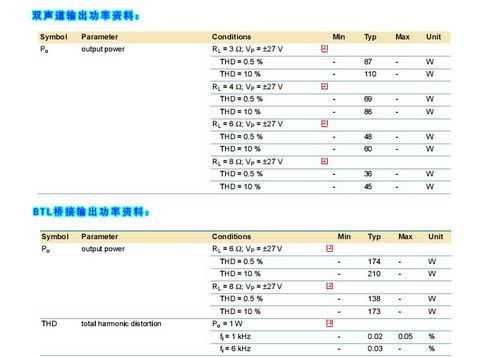

Parameters:

    Signal to Noise Ratio:  >85dBA
    Degree of distortion:  <0.05%
    Input impedance: 10K ohm
    Input Sensitivity:  955mV(THD=1%)                                1175mV(THD=10%)

    Input power supply:  dual AC12V(+12  0  -12) to dual AC20V(+20  0  -20)
    PCB size: 100mm * 86mm


Note:

1) In order to improve sound quality,Some components maybe will be changed without notice.

>>We will ship by registered airmail(normally takes 13-20 days to arrived, some countries will be about a month), tracking number will be provided, safer than un-registered one.
(If you want a faster delivery, you can choose DHL/FedEx/EMS etc, just contact us for the actual shipping cost, which is defferent from the package weight and different countries.)




Add to Cart:

  • Shipping Weight: 200g
  • 5 Units in Stock


This product was added to our catalog on Thursday 27 October, 2011.
